5-Axis Machining San Diego & Large Diameter CNC Turning

EQUIPMENT
MANIFEST

Dye CNC operates a state-of-the-art production floor with 47 CNC machines spanning 5-axis machining San Diego customers rely on, large diameter CNC turning 68 inch, and lights-out CNC production.

// EQUIPMENT MANUFACTURERS

EQ-001

Hermle C-42 U MT — 5 Axis VMC — 5-Axis Vertical Machining Center (Mill/Turn) at Dye Precision CNC

Hermle C-42 U MT — 5 Axis VMC

EQ-002

Haas UMC-1500-SS — 5 Axis — 5-Axis Universal Machining Center at Dye Precision CNC

Haas UMC-1500-SS — 5 Axis

EQ-003

(5) Makino N2-5XA — 5 Axis — 5-Axis Horizontal Machining Center at Dye Precision CNC

(5) Makino N2-5XA — 5 Axis

EQ-004

Mori Seiki NMV5000 DCG — 5 Pallet — 5-Axis Machining Center (DCG) at Dye Precision CNC

Mori Seiki NMV5000 DCG — 5 Pallet

EQ-005

Doosan Mynx 7500 — 3-Axis Vertical Machining Center (Box Way) at Dye Precision CNC

Doosan Mynx 7500

EQ-006

Doosan DNM 6700 — 3-Axis Vertical Machining Center at Dye Precision CNC

Doosan DNM 6700

EQ-007

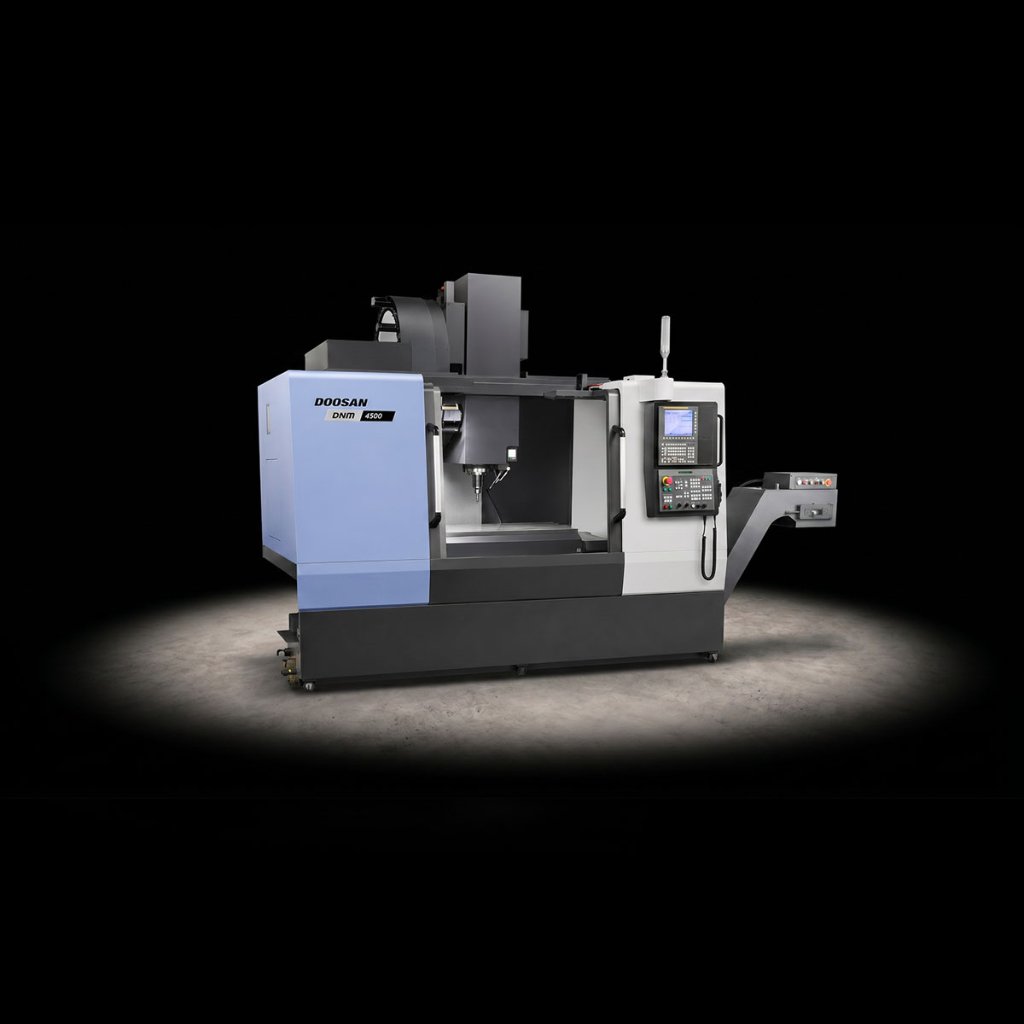

Doosan DNM 4500 — 3-Axis Vertical Machining Center at Dye Precision CNC

Doosan DNM 4500

EQ-008

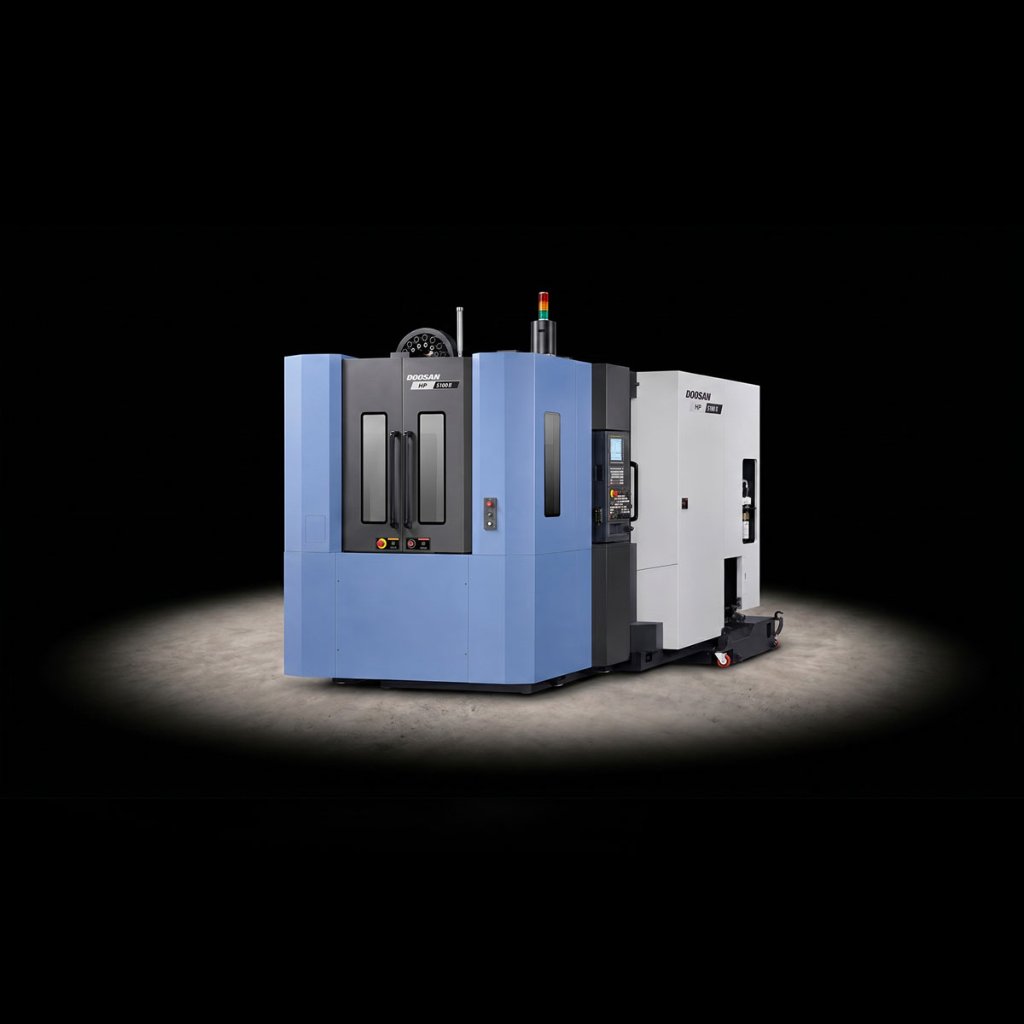

(2) Doosan HP II 5100 — Horizontal Machining Center at Dye Precision CNC

(2) Doosan HP II 5100

EQ-009

(12) Haas VF4-SS Vertical — 3-Axis Vertical Machining Center (Super Speed) at Dye Precision CNC

(12) Haas VF4-SS Vertical

EQ-010

(12) Haas VF2-SS Vertical — 3-Axis Vertical Machining Center (Super Speed) at Dye Precision CNC

(12) Haas VF2-SS Vertical

EQ-011

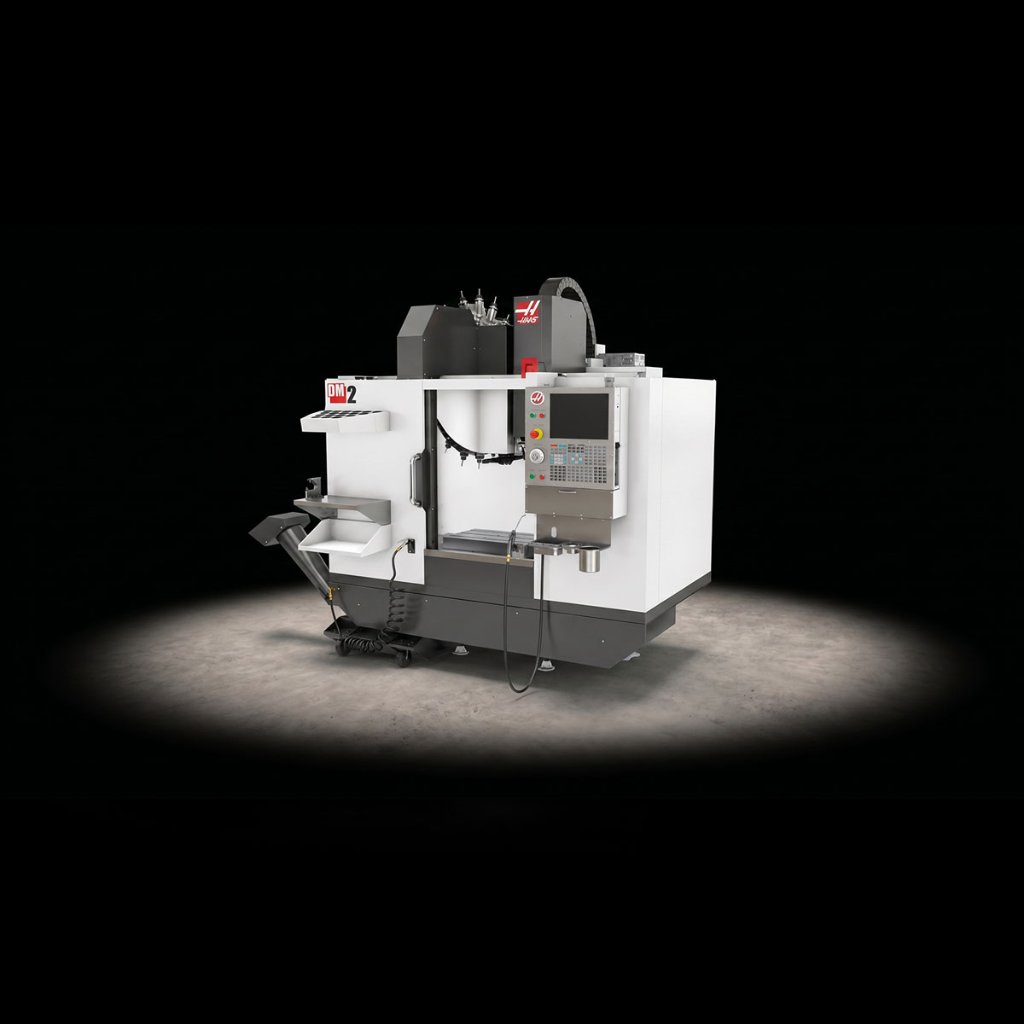

Haas DM-2 Drill/Mill — 3-Axis Drill / Tap / Mill Center at Dye Precision CNC

Haas DM-2 Drill/Mill

EQ-012

Haas Mini Mill — 3-Axis Vertical Machining Center (Compact) at Dye Precision CNC

Haas Mini Mill

EQ-013

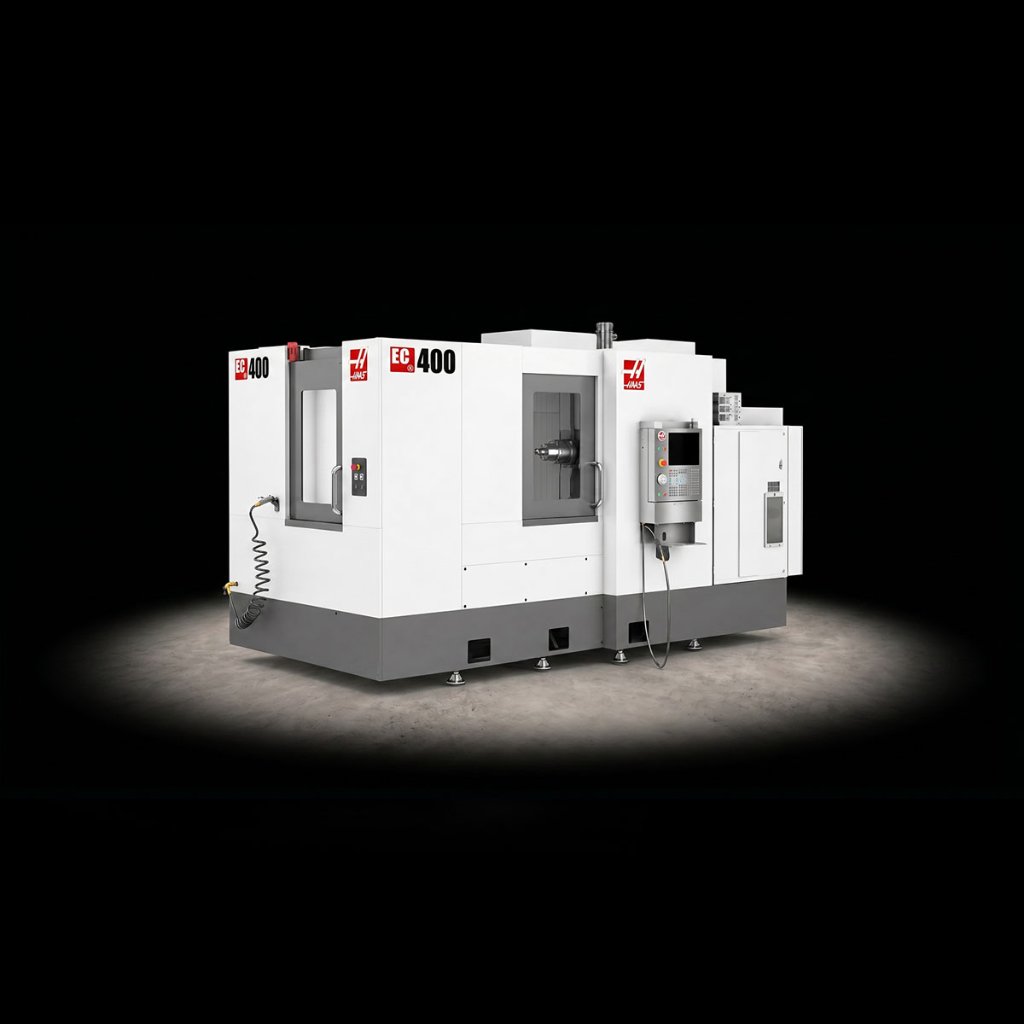

Haas EC400 Horizontal (2 Pallet) — Horizontal Machining Center at Dye Precision CNC

Haas EC400 Horizontal (2 Pallet)

EQ-014

(2) Mori Seiki NZX2000SY2 CNC Lathe — Mill-Turn Lathe (Twin-Spindle, Y-axis) at Dye Precision CNC

(2) Mori Seiki NZX2000SY2 CNC Lathe

EQ-015

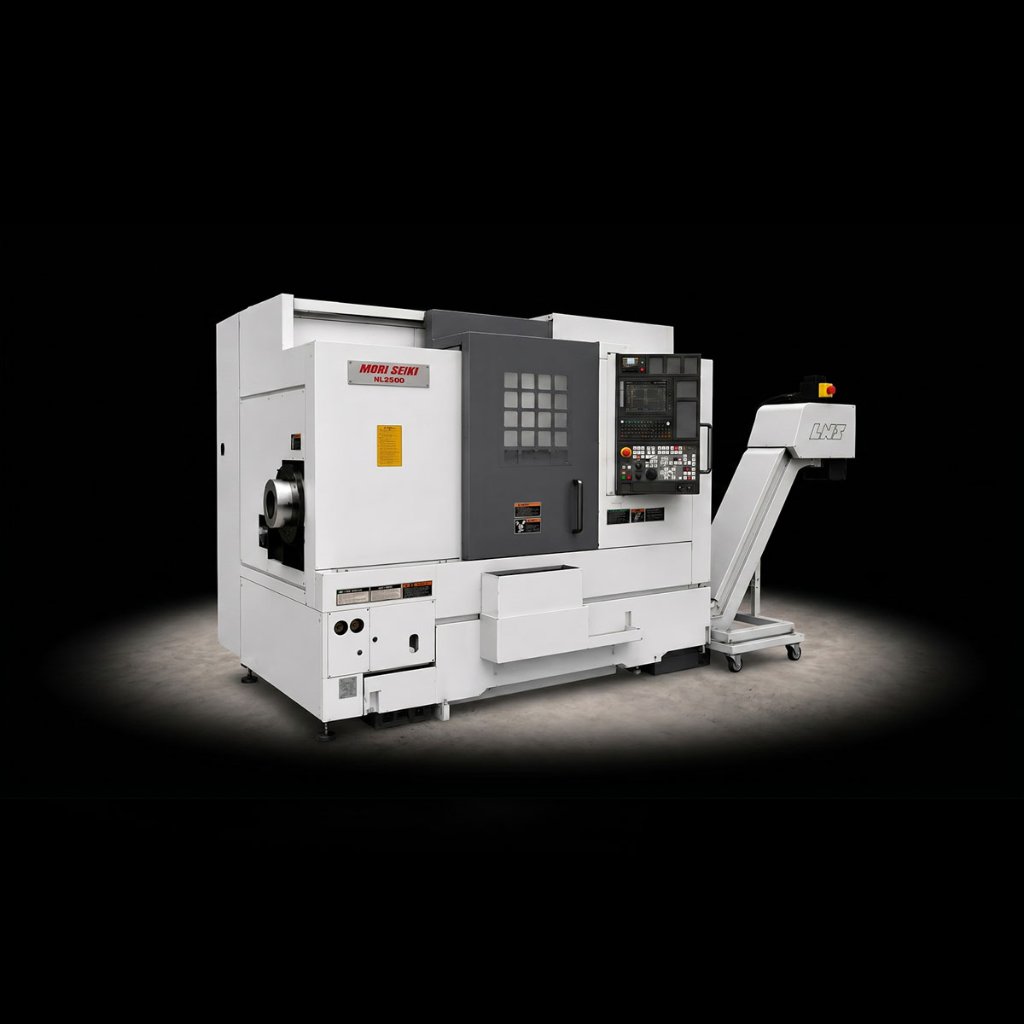

Mori Seiki NL2500 SY — Mill-Turn Lathe (Y-axis) at Dye Precision CNC

Mori Seiki NL2500 SY

EQ-016

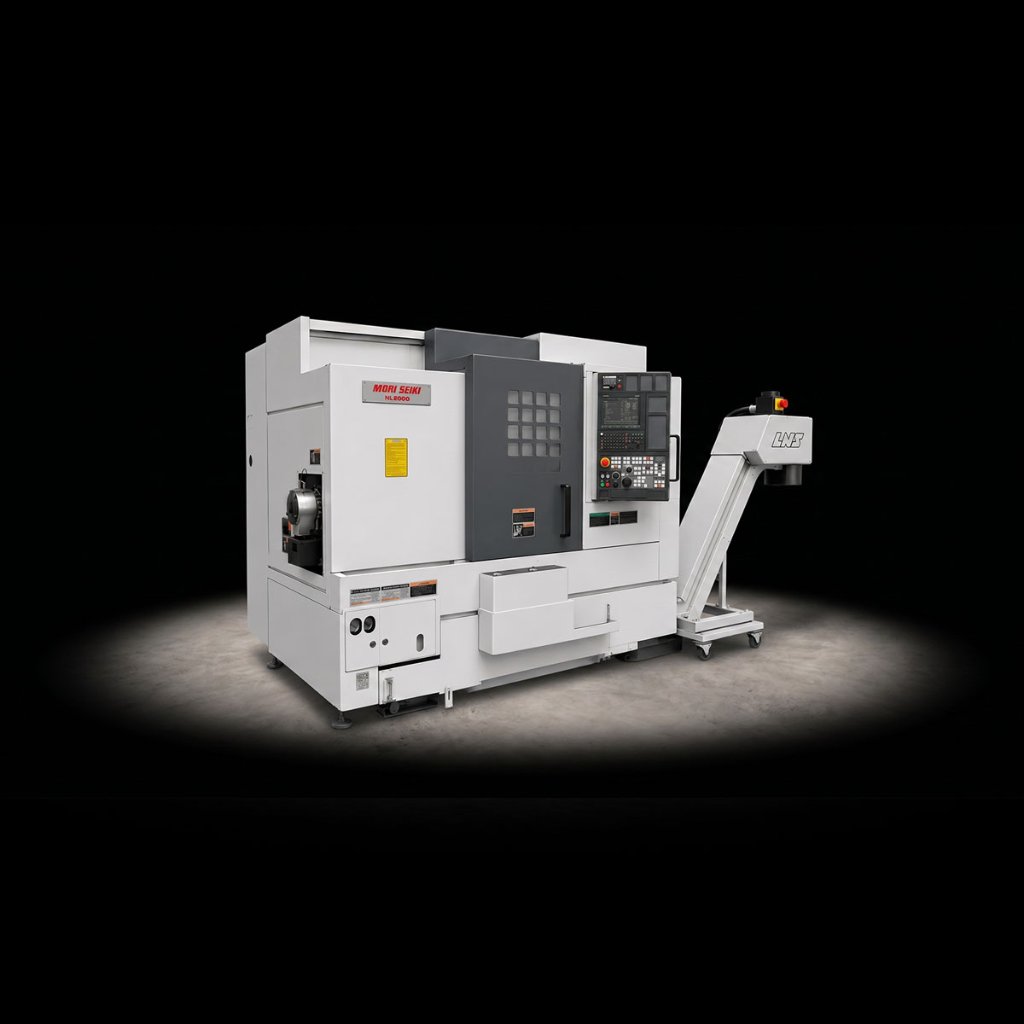

Mori Seiki NL2000 — CNC Lathe at Dye Precision CNC

Mori Seiki NL2000

EQ-017

Okuma Genos L300-M-e CNC Lathe — CNC Lathe (M-function / Turn-Mill) at Dye Precision CNC

Okuma Genos L300-M-e CNC Lathe

EQ-018

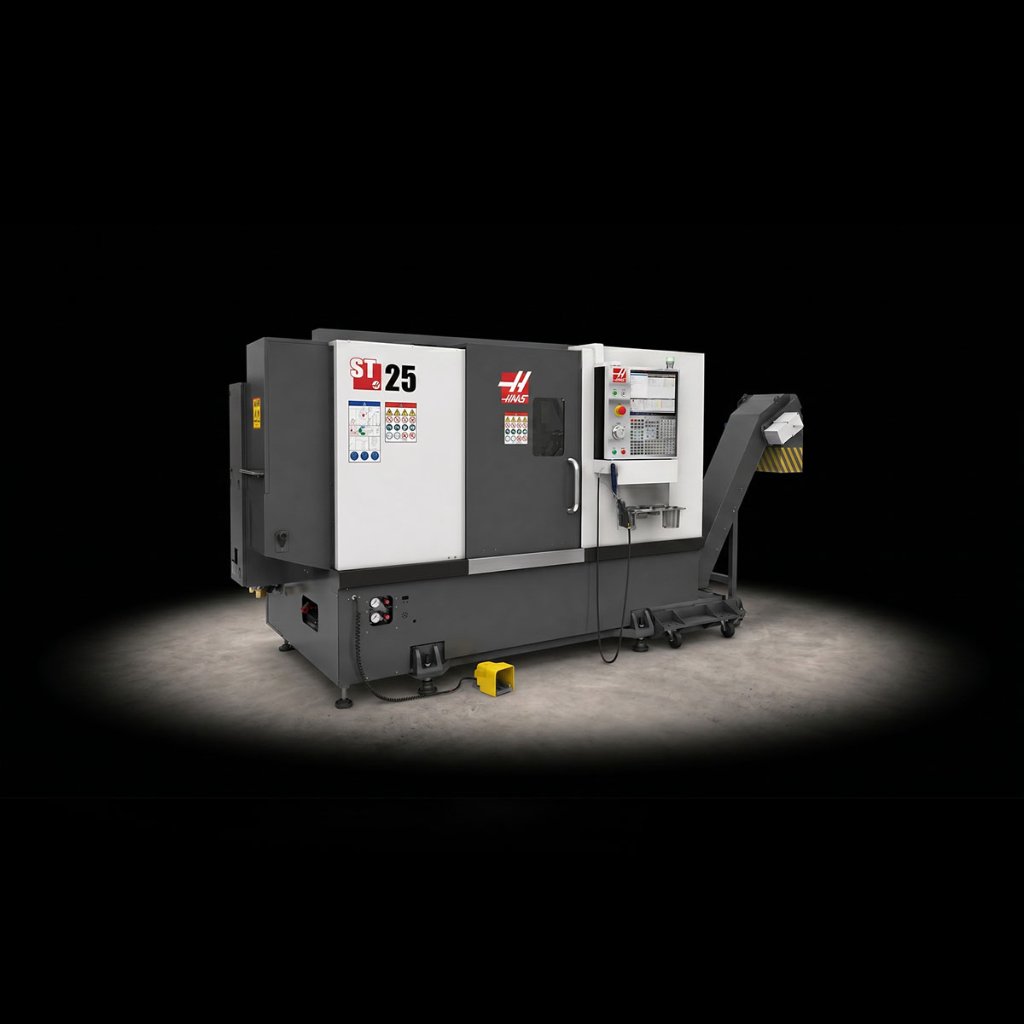

Haas ST-25 CNC Lathe — CNC Turning Center at Dye Precision CNC

Haas ST-25 CNC Lathe

EQ-019

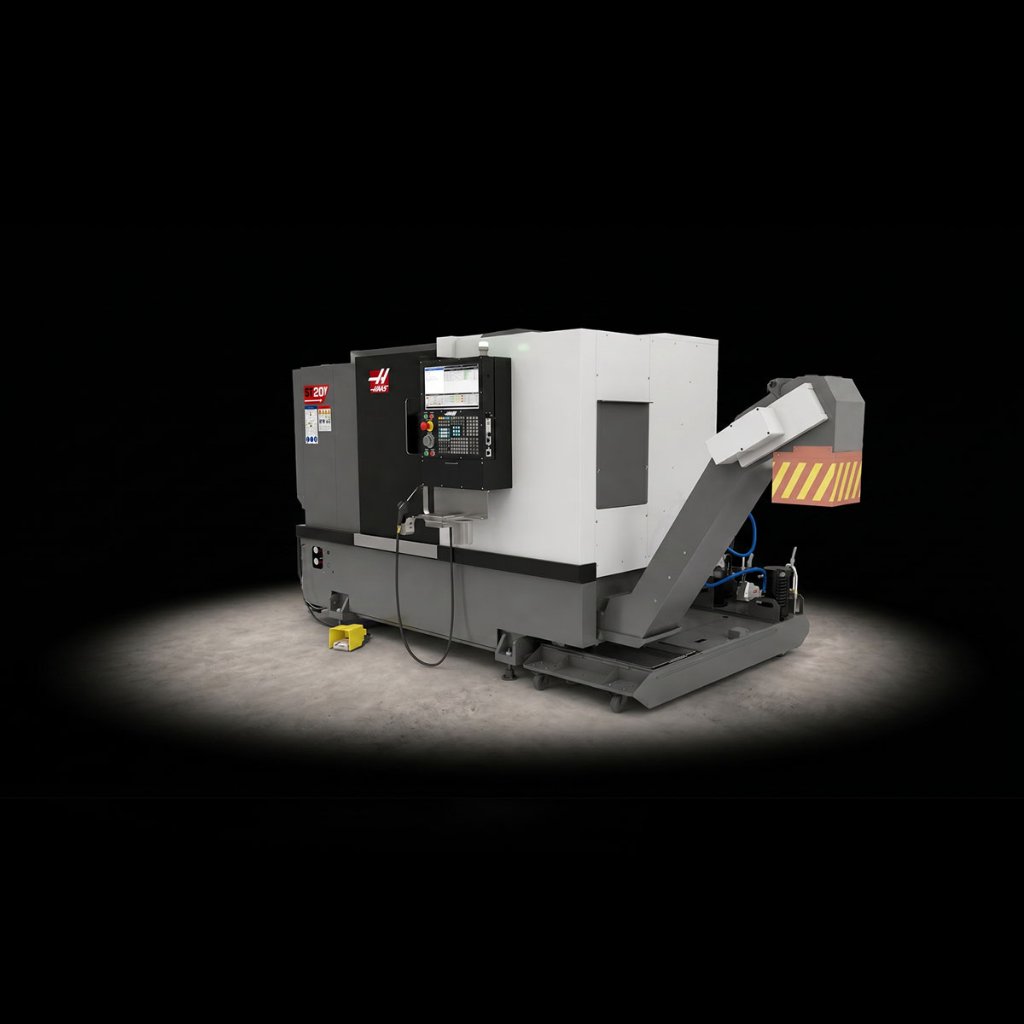

Haas ST-20Y CNC Lathe — Mill-Turn Lathe (Y-axis) at Dye Precision CNC

Haas ST-20Y CNC Lathe

EQ-020

Shibaura TMD-13C — Vertical Boring & Turning Mill (3-axis, live spindle) at Dye Precision CNC

Shibaura TMD-13C

EQ-021

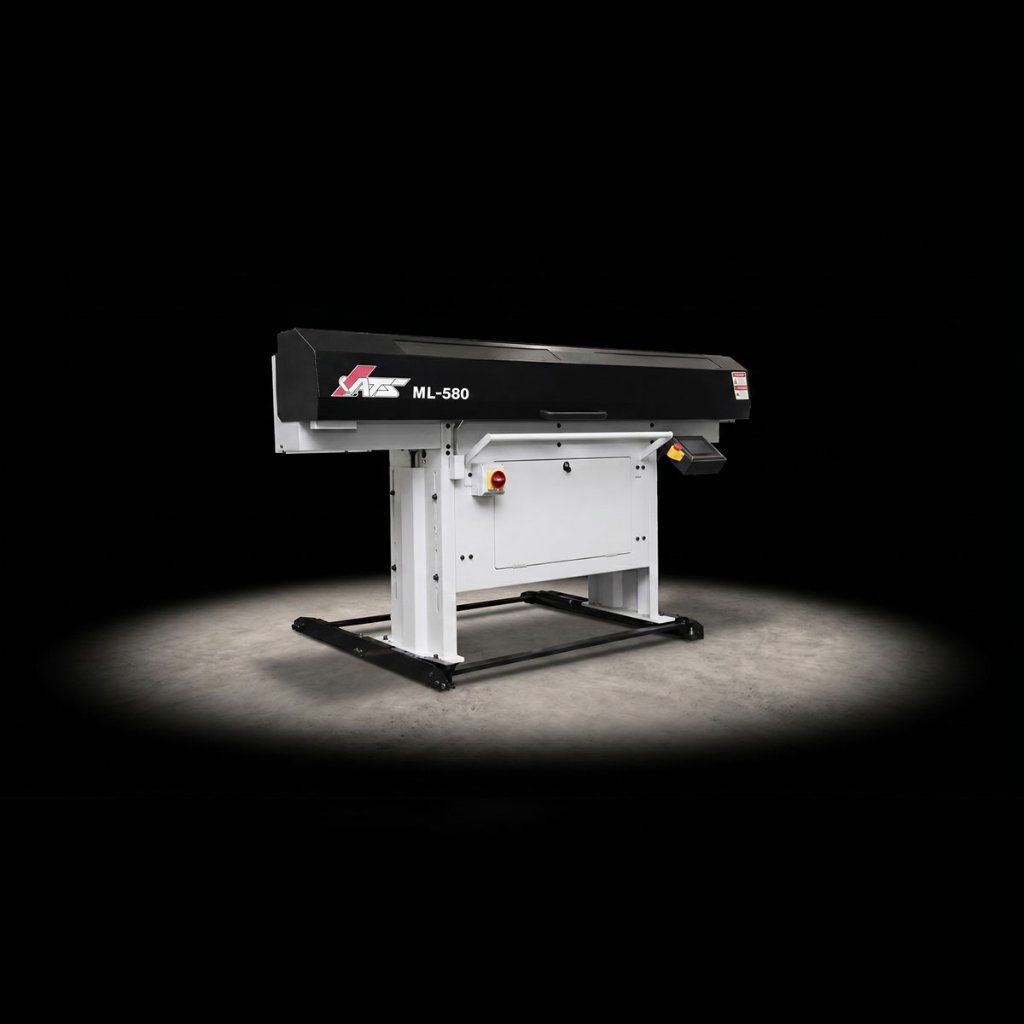

(4) ATS ML-580 Bar Feeder — Magazine-Type Automatic Bar Loader / Feeder at Dye Precision CNC

(4) ATS ML-580 Bar Feeder

EQ-022

Amada CNC Saw & Bandsaw — CNC Automatic Bandsaw at Dye Precision CNC

Amada CNC Saw & Bandsaw

EQ-023

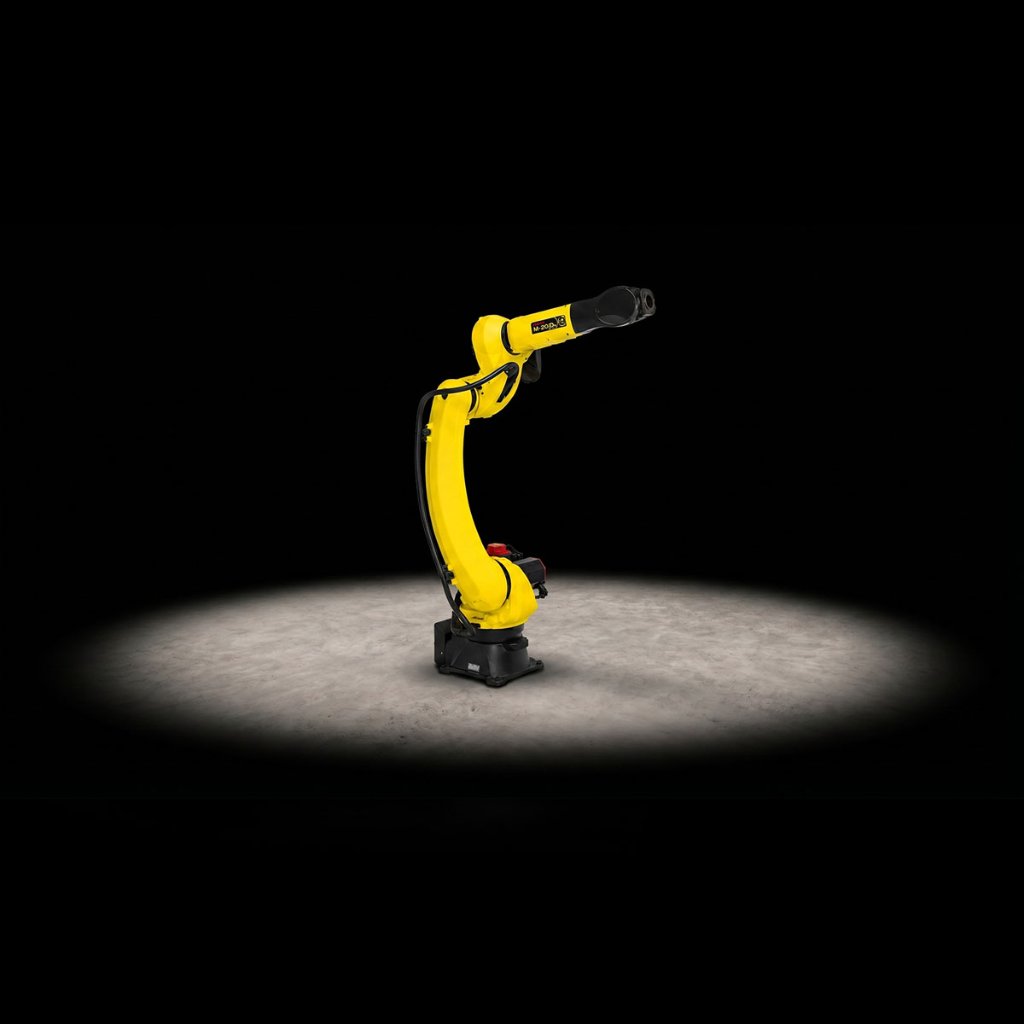

Fanuc M-20iD Robot — 6-Axis Industrial Robot (Machine Tending) at Dye Precision CNC

Fanuc M-20iD Robot

EQ-024

Burr King Vibra King 45 Bead Blaster — Vibratory Finishing Chamber (Deburr / Polish) at Dye Precision CNC

Burr King Vibra King 45 Bead Blaster

EQ-025

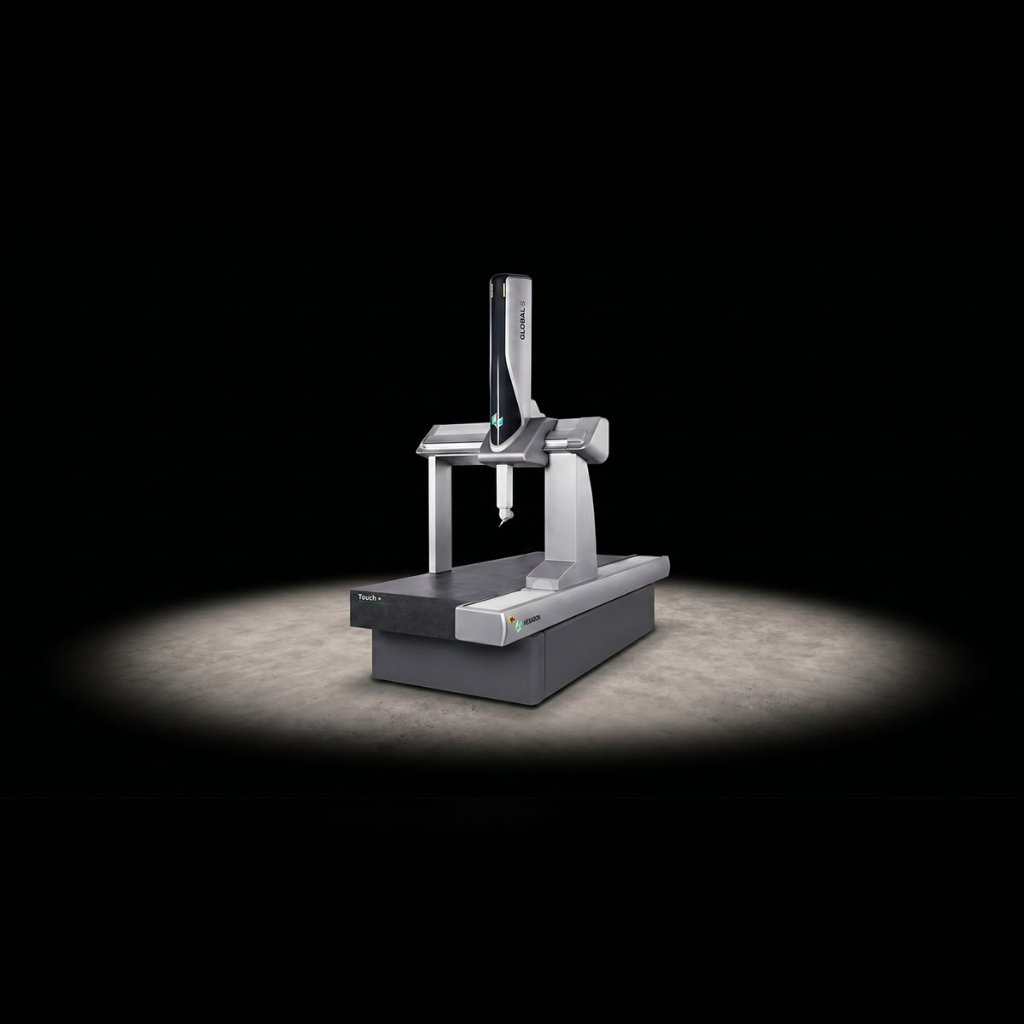

(2) Hexagon Global S Touch CMM — Bridge Coordinate Measuring Machine (CMM) at Dye Precision CNC

(2) Hexagon Global S Touch CMM

EQ-026

Hexagon Tigo SF CMM — Shop-Floor Bridge CMM at Dye Precision CNC

Hexagon Tigo SF CMM

EQ-027

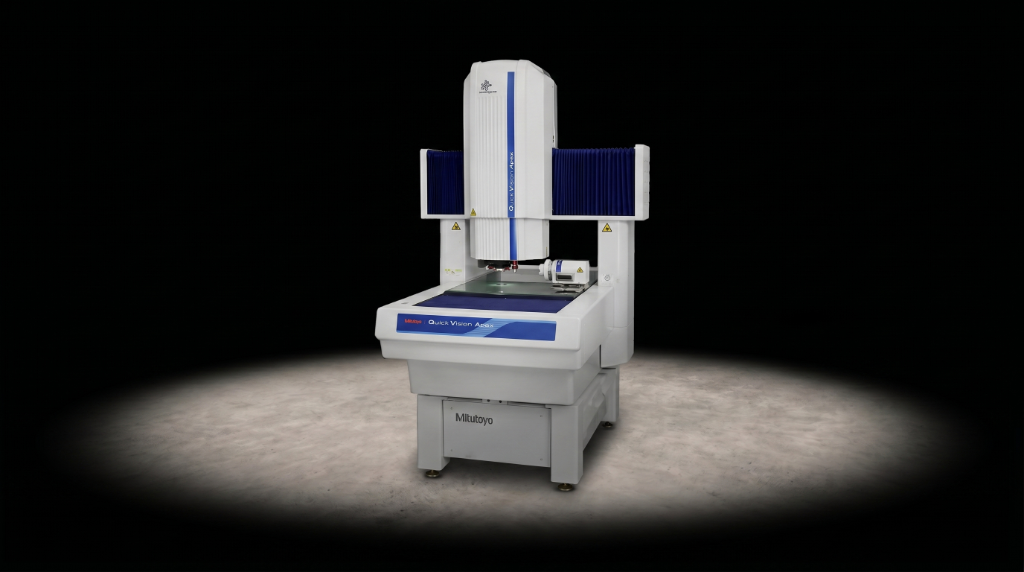

MITUTOYO CNC QUICK VISION SYSTEM — CNC Vision Measuring System at Dye Precision CNC

MITUTOYO CNC QUICK VISION SYSTEM

EQ-028

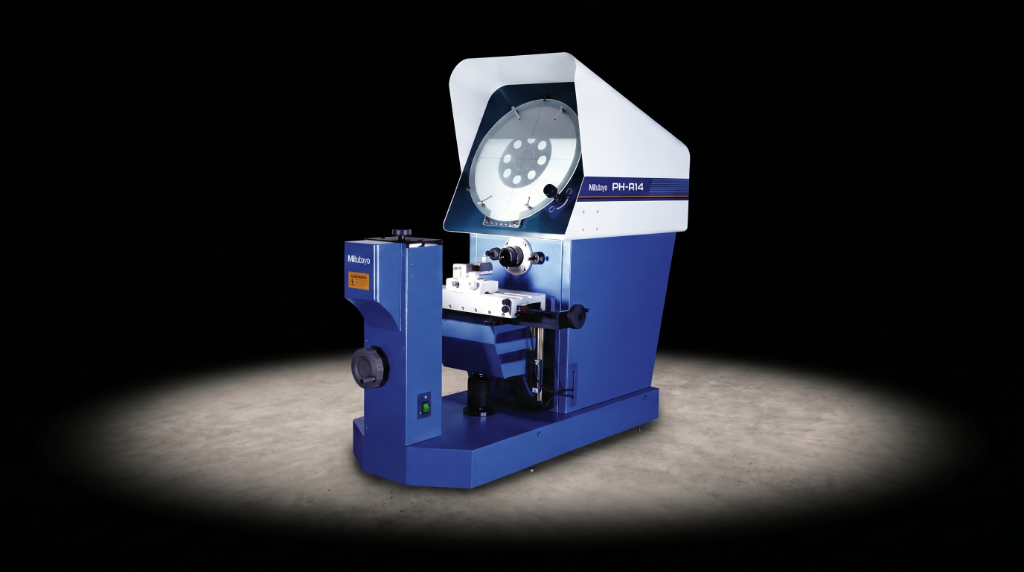

Mitutoyo Optical Comparator PH-A14

// MODULE-02 // SUPPORT SYSTEMS

Specifications

// INSPECTION — MANIFEST LOADED

INS-001(2) Hexagon Global S 9.12.8 CMMONLINE

INS-002Hexagon TIGO SF CMMONLINE

INS-003(2) Aven MicroVue Digital MicroscopeONLINE

INS-004(2) Tesa Hite Guage Magna 700ONLINE

INS-005Mitutoyo CNC Vision Measuring SystemONLINE

INS-006Mitutoyo Optical Comparator PH-A14ONLINE
